1/1000 Next Generation Star Ship

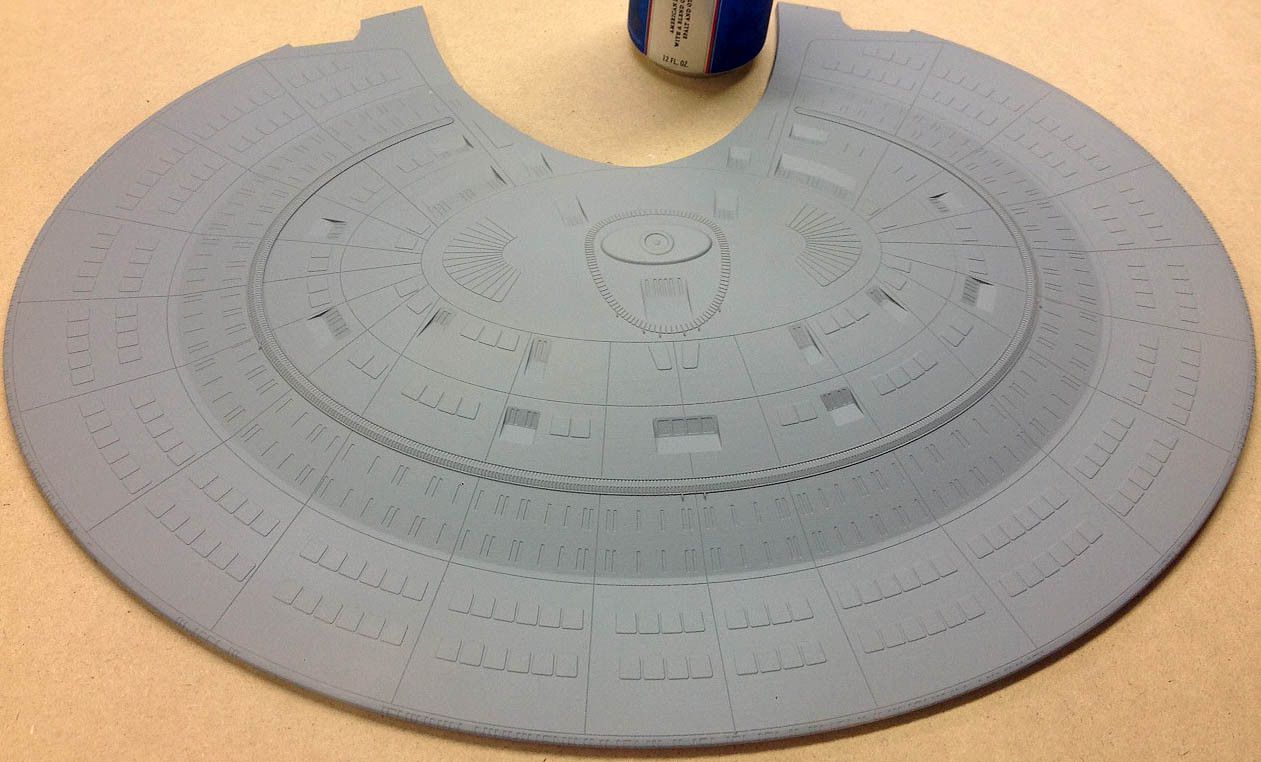

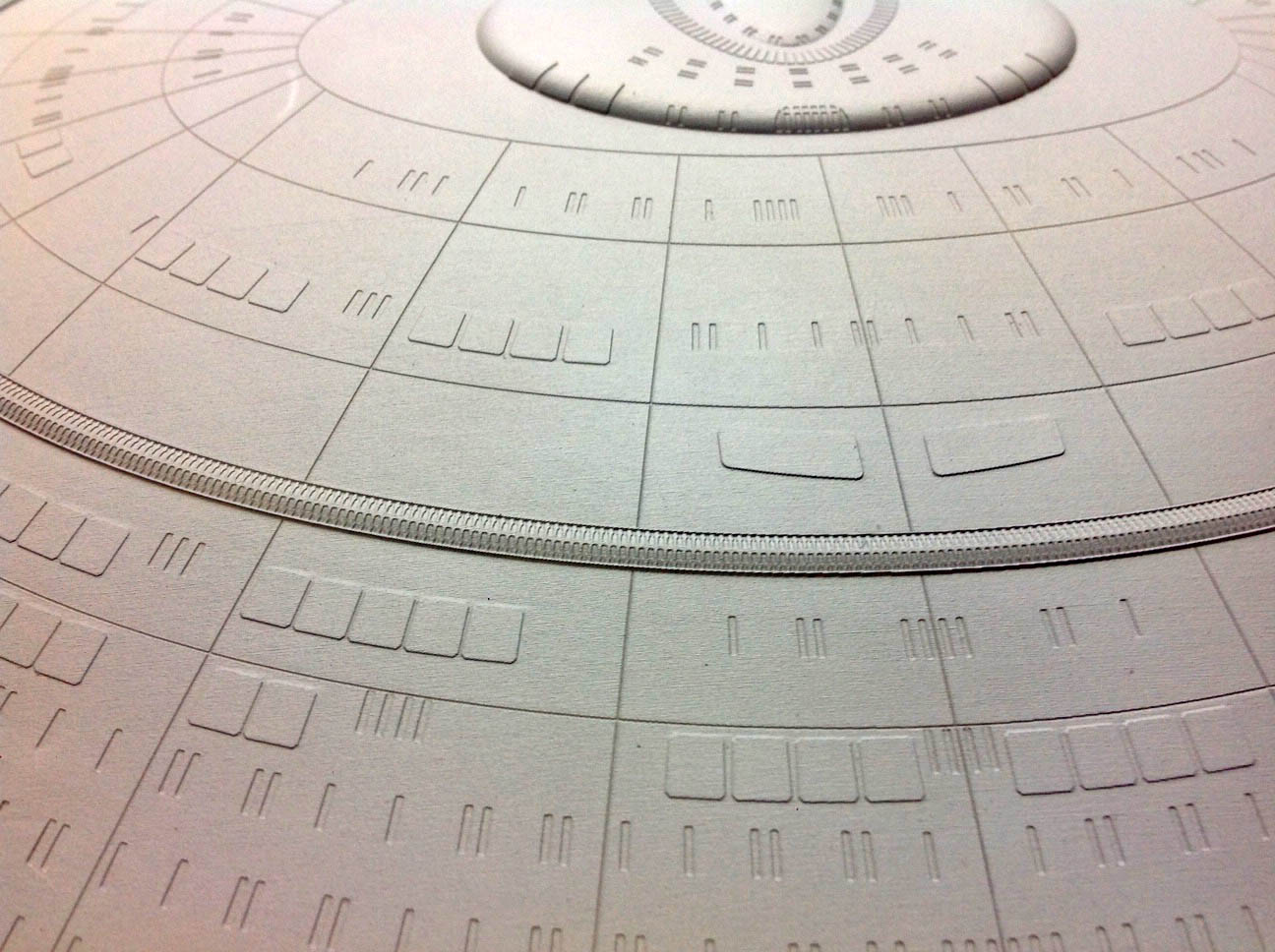

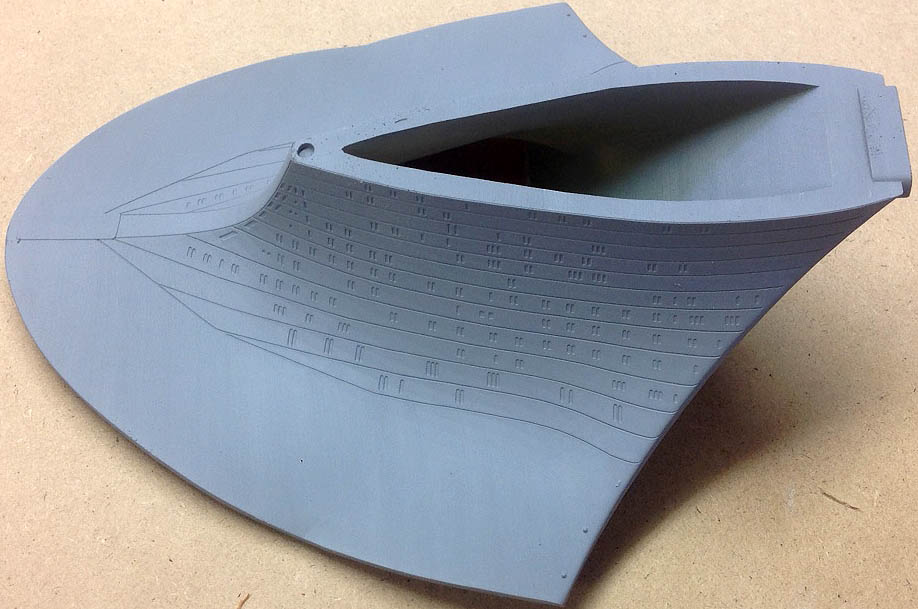

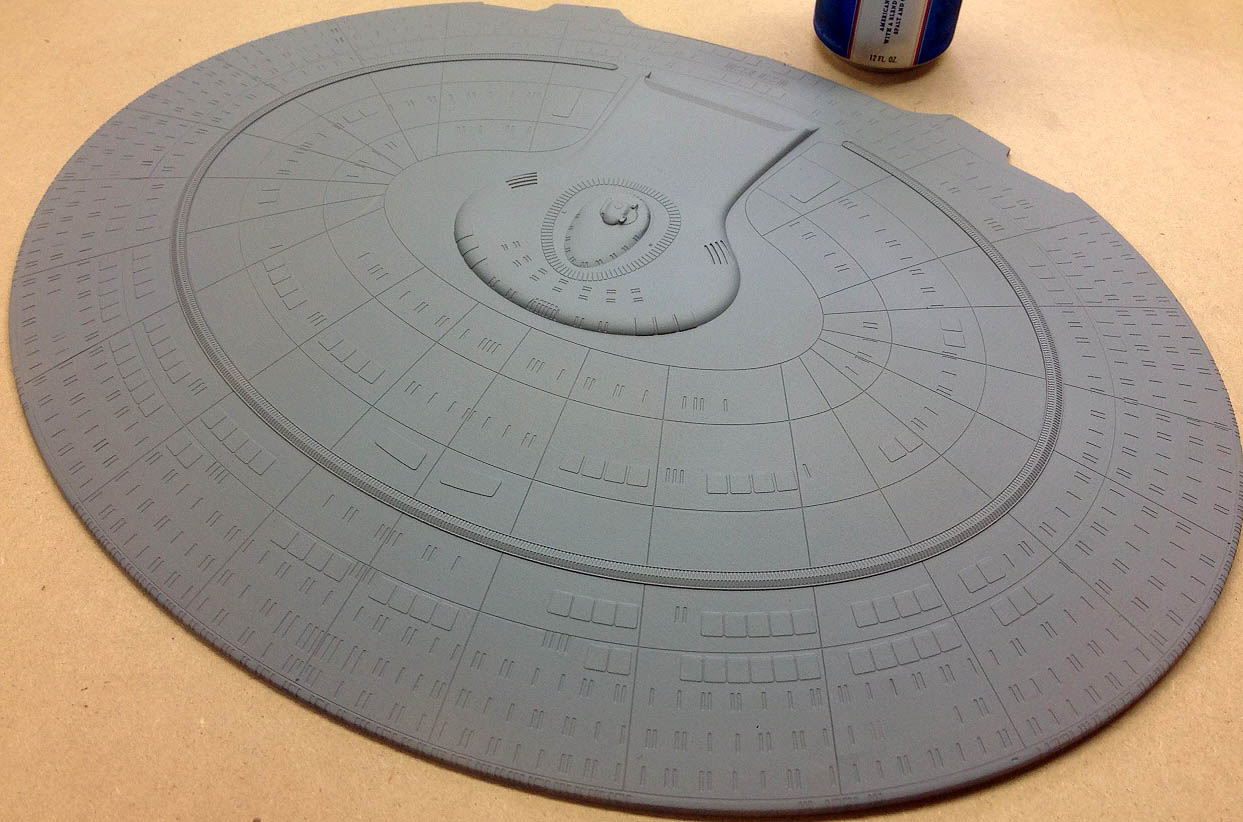

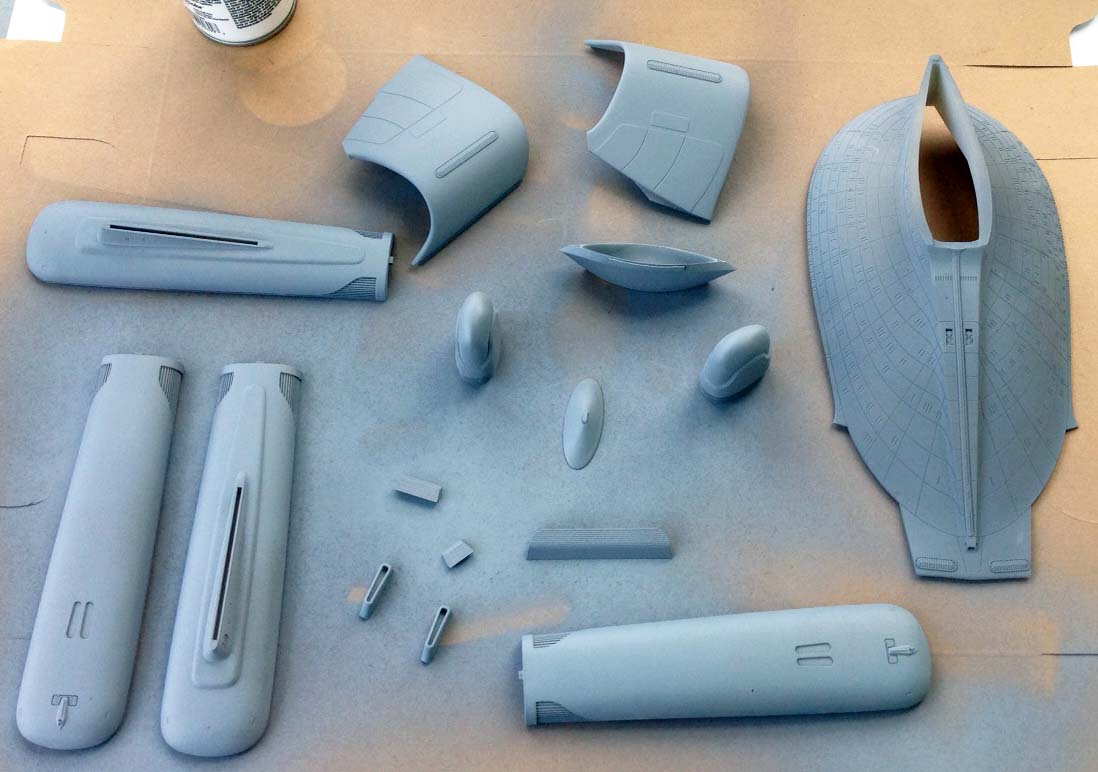

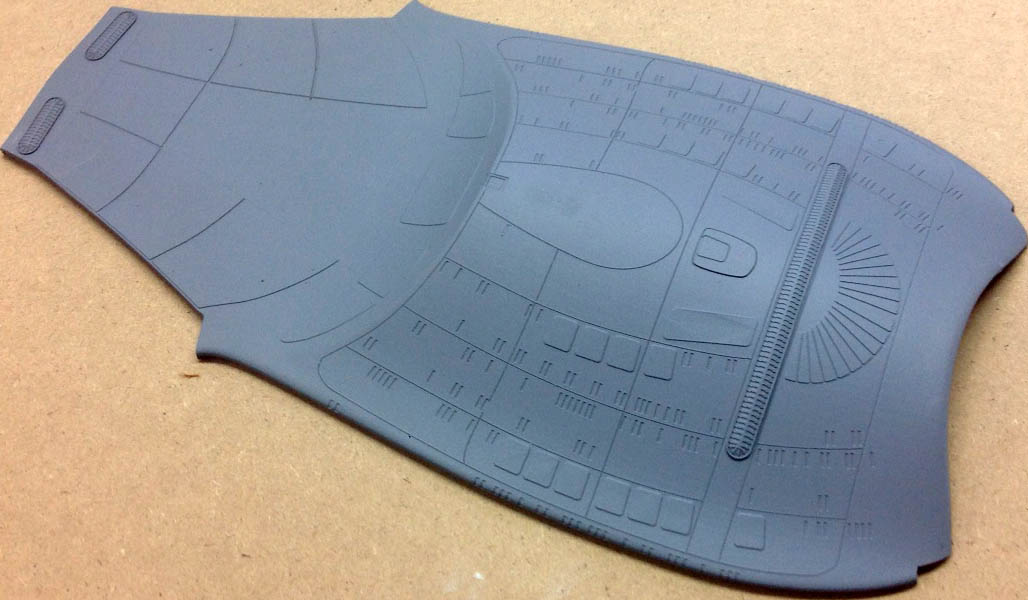

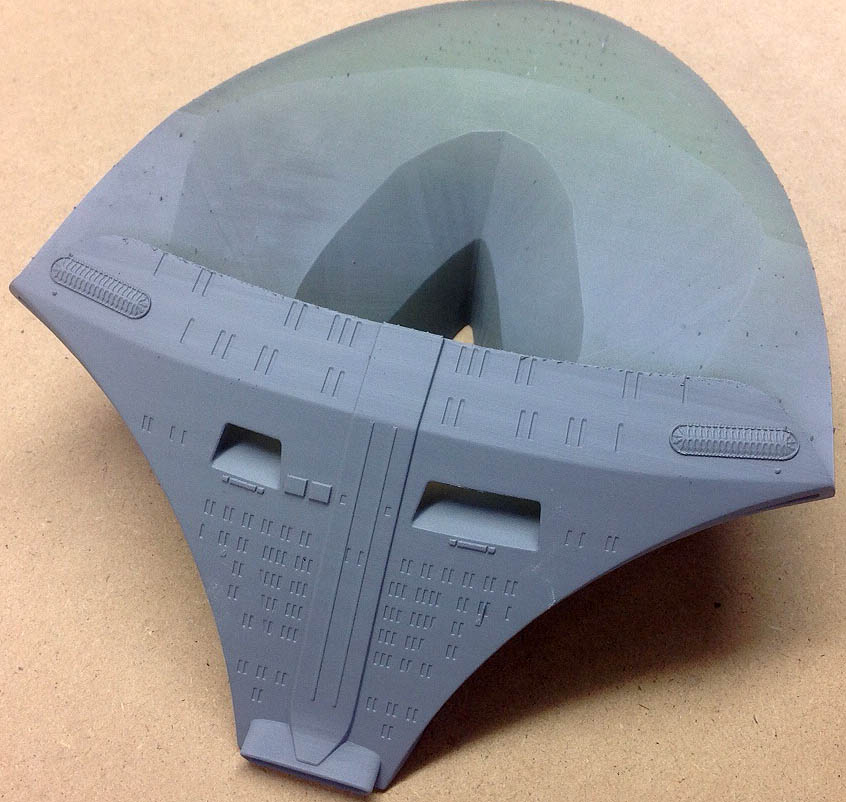

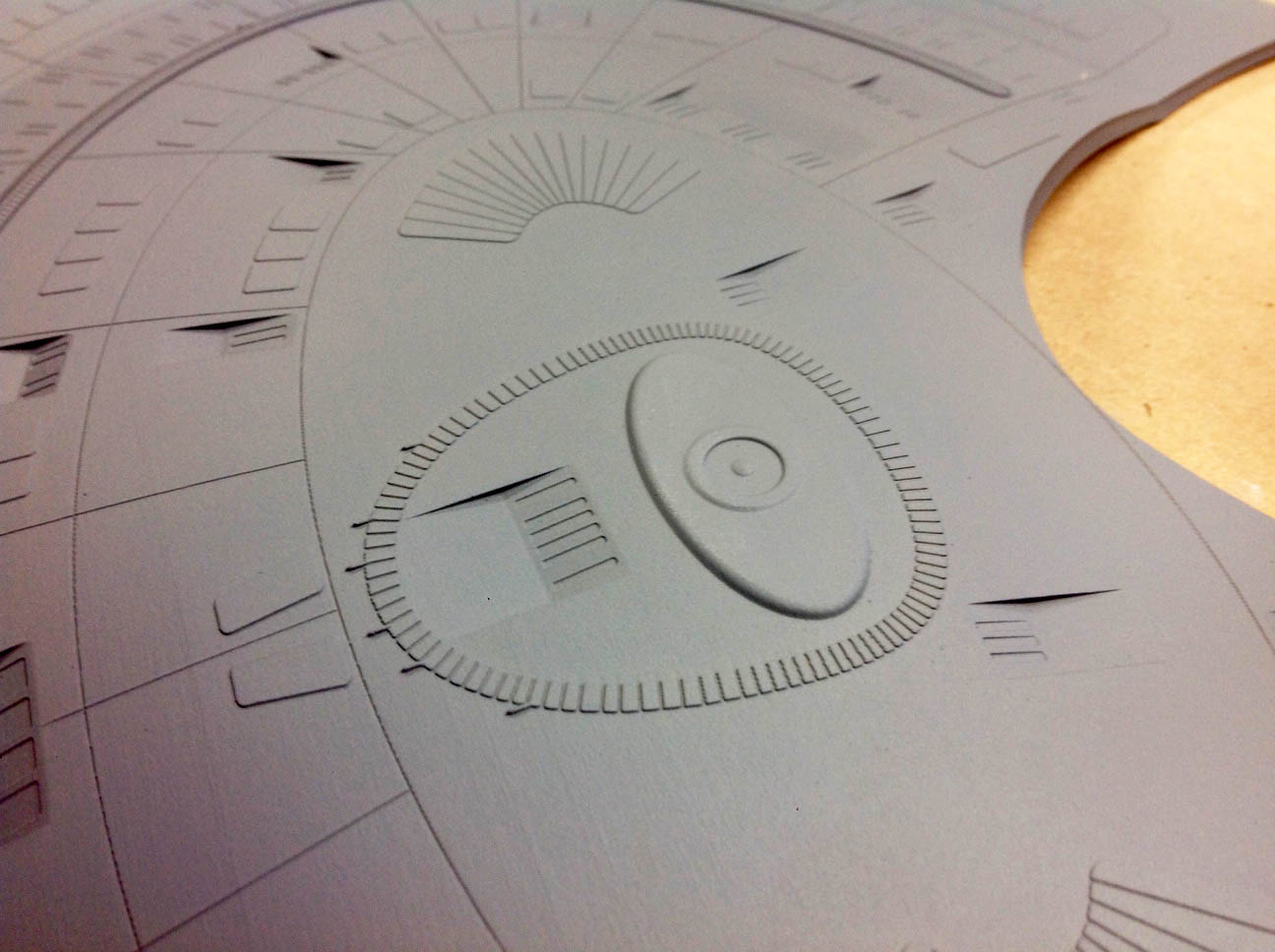

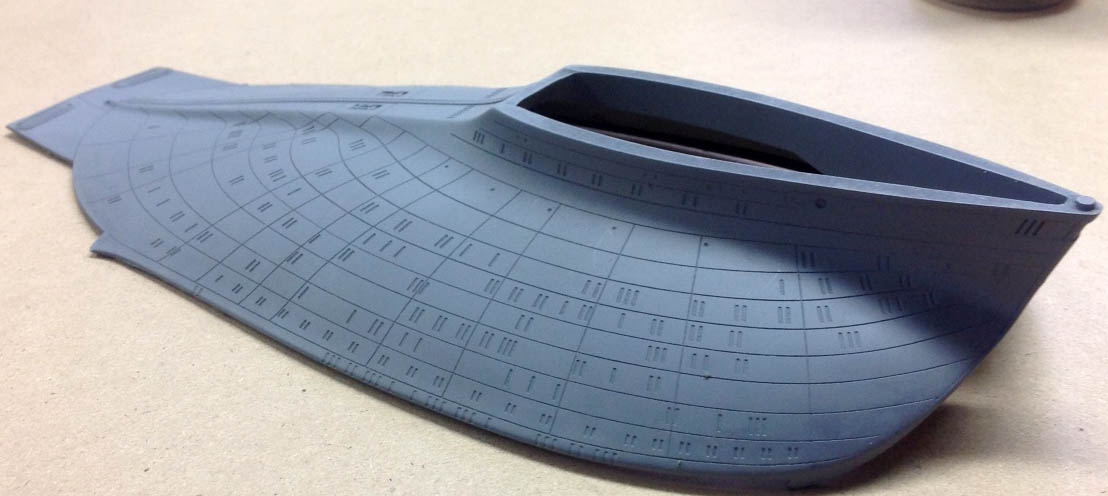

The images below show the master pattern parts for a studio scale model, the same size as the 2-foot special effects model built by ILM for the show. The project started out as a CAD model and has been quite an enterprise, but I believe it was worth the trek.

The decal sheets were drawn by me for the model.

1:1000 Enterprise D 1 1:1000 Enterprise D 2 1:1000 Enterprise D 3 1:1000 Enterprise D 4
1:1000 Next Generation 5 1:1000 Next Generation 6 1:1000 Next Generation 7 1:1000 Next Generation 13
1:1000 1701D 9 1:1000 1701D 10 1:1000 1701D 11 1:1000 1701D 12

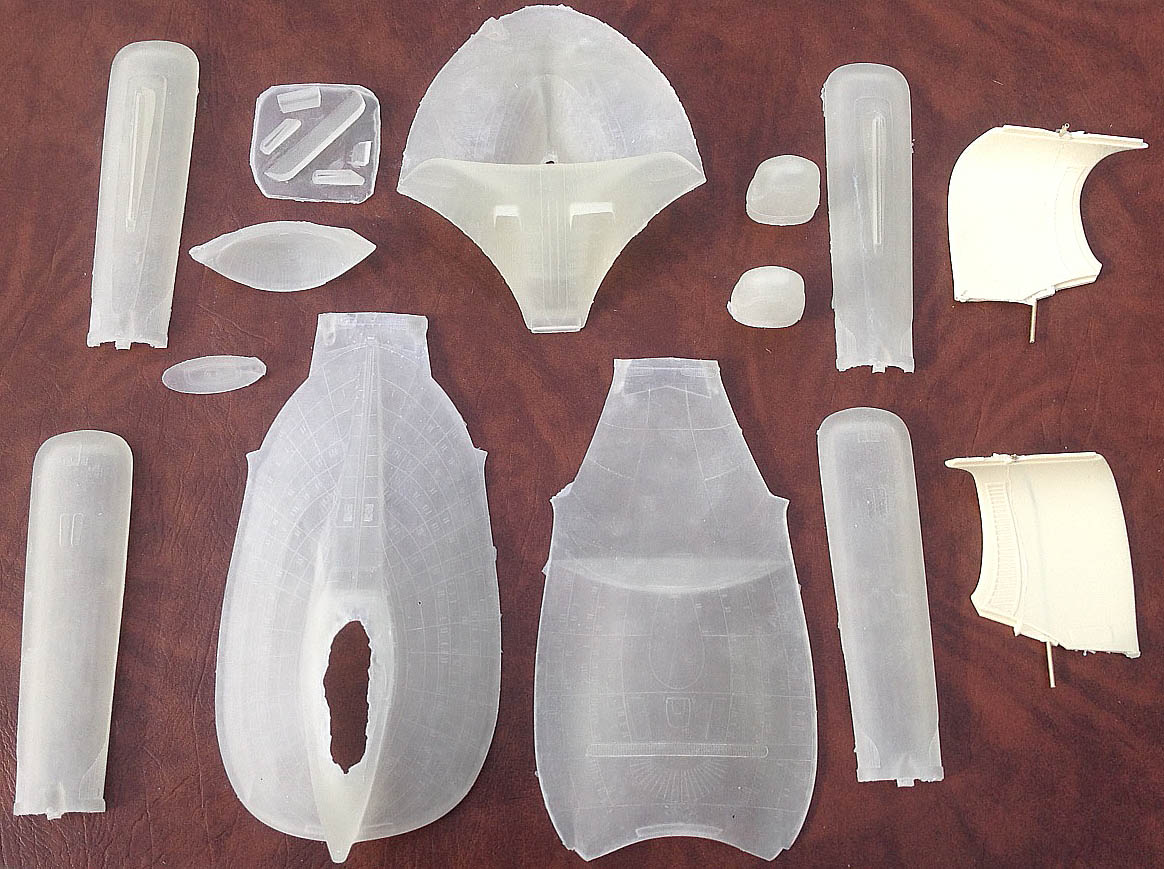

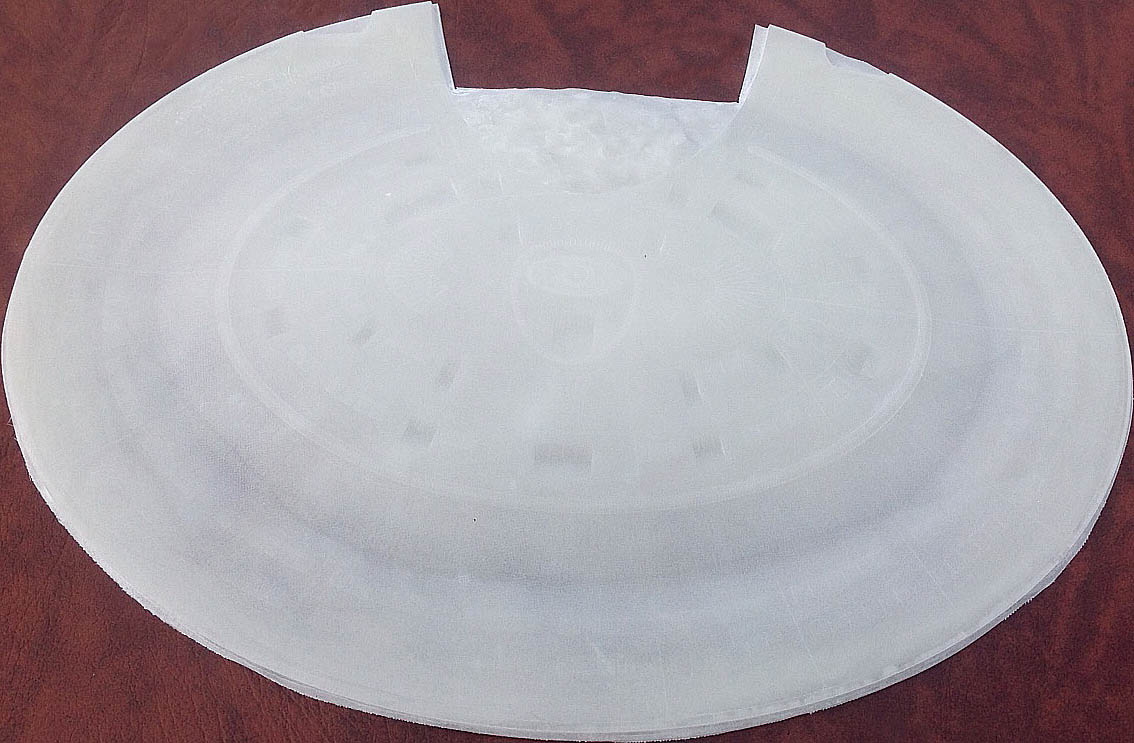

3D printed parts aren't always suitable for building a model as the material can be brittle or otherwise fragile. For this reason, silicone molds were taken from the pattern parts and urethane castings were made. Most of the model is cast in translucent resins to aid in lighting. The saucer is made of fiberglass while the remaining pieces are pressure-cast. The images below show some of these these castings.

You can see an instruction sheet and decal placement guide for the model here.

The dimensions of the model are 25.3" x 19" x 5.5".

1:1000 Enterprise 1701D 13 1:1000 Enterprise 1701D 14 1:1000 Enterprise 1701D 15

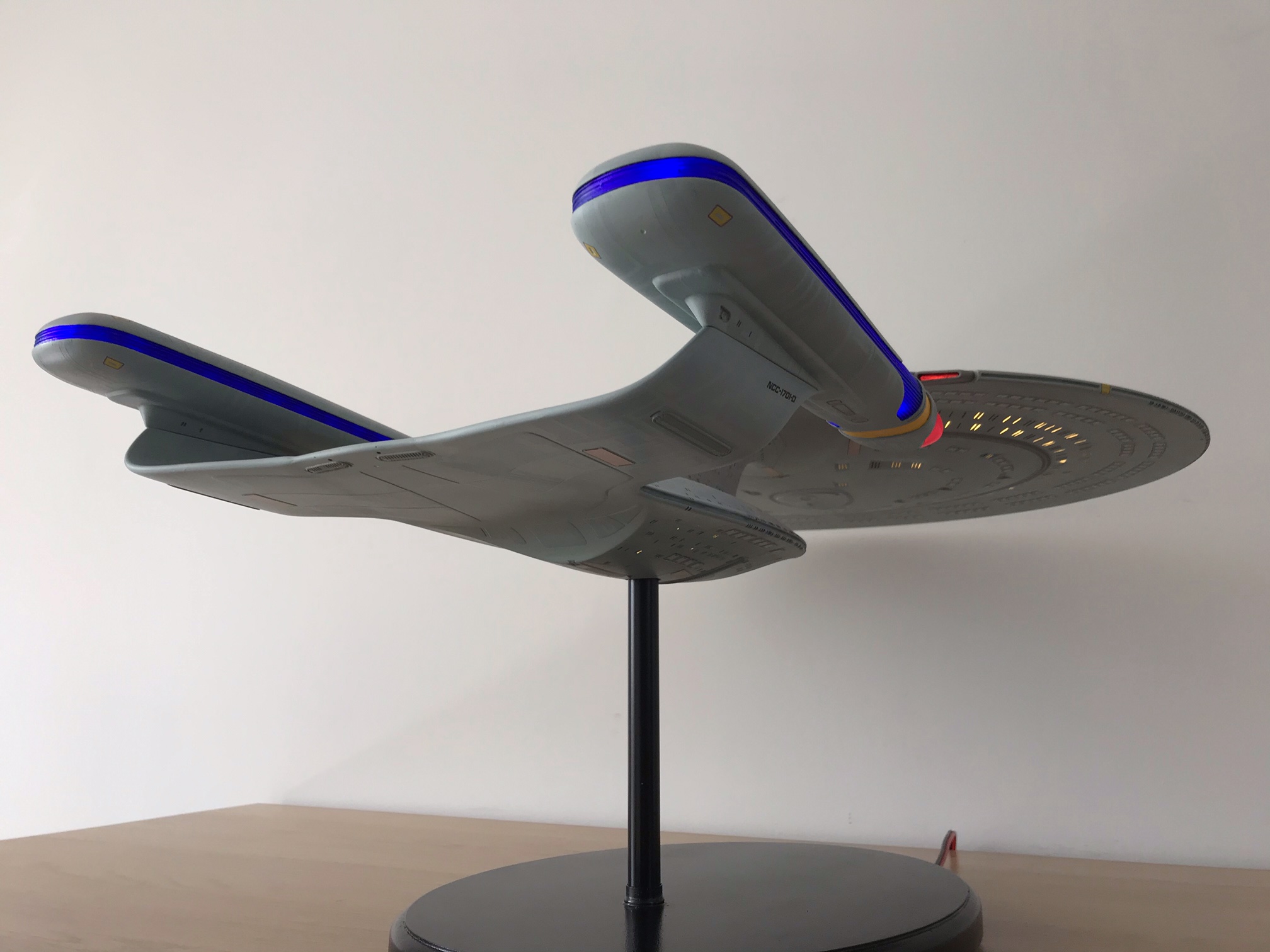

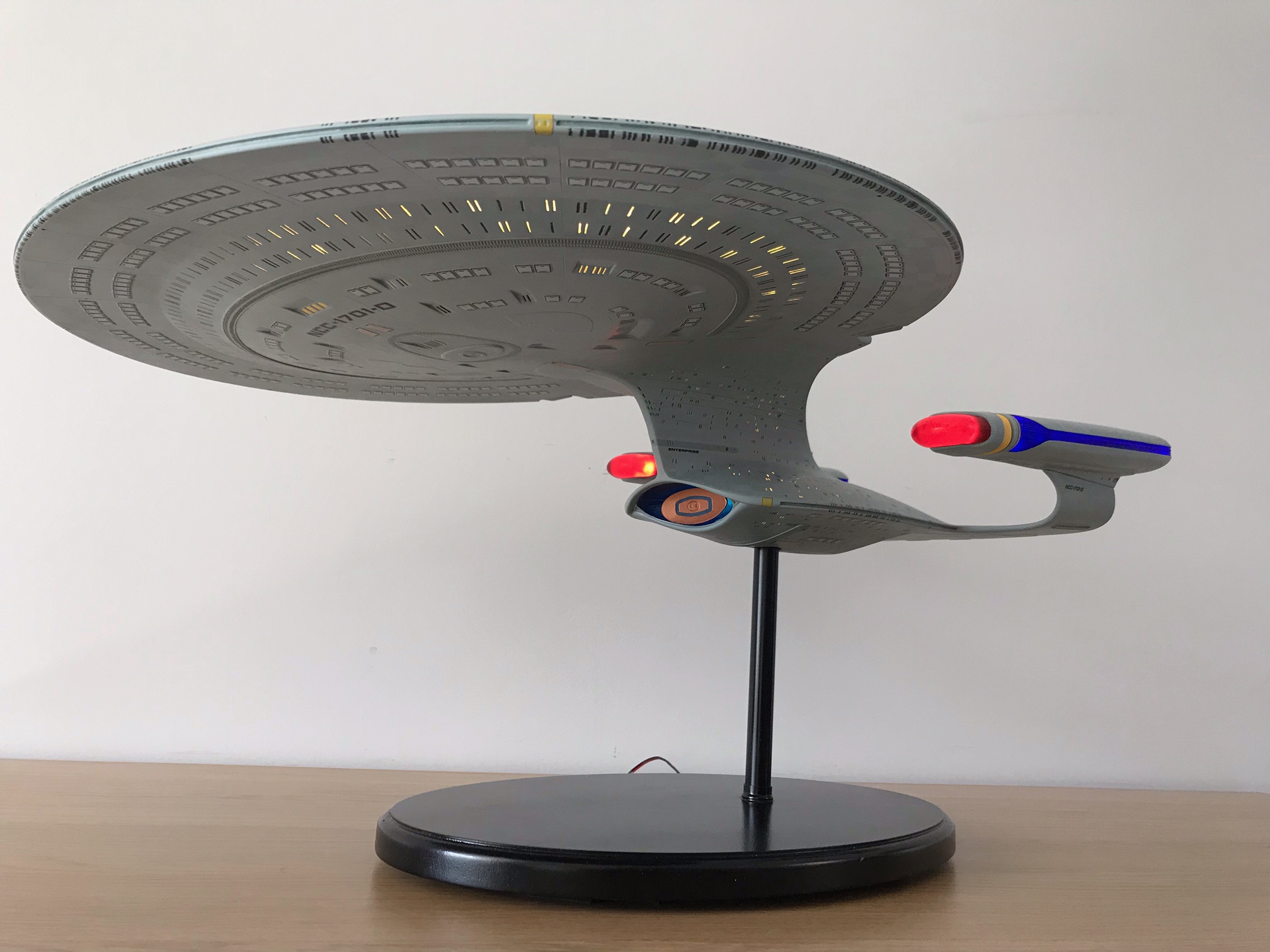

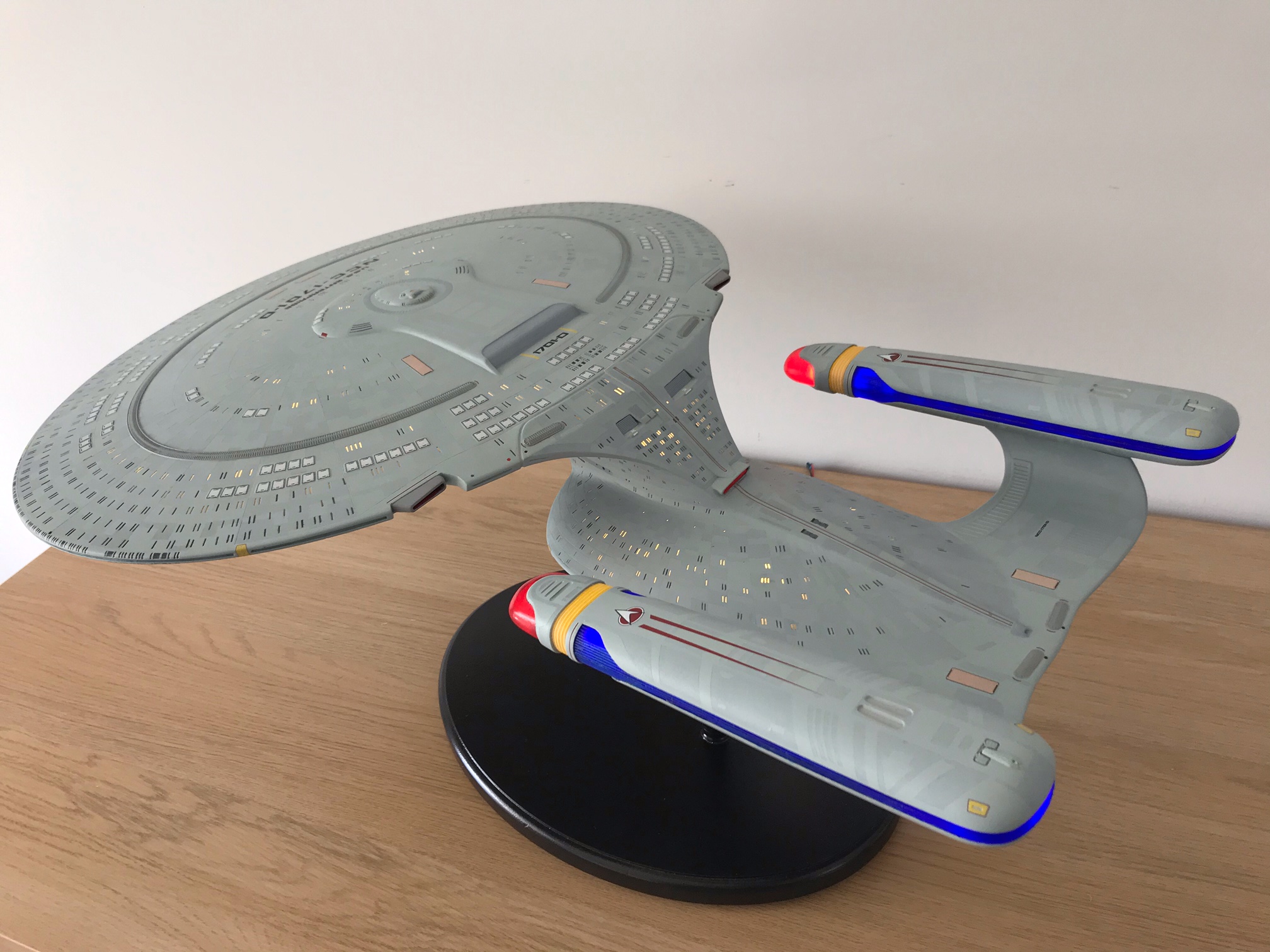

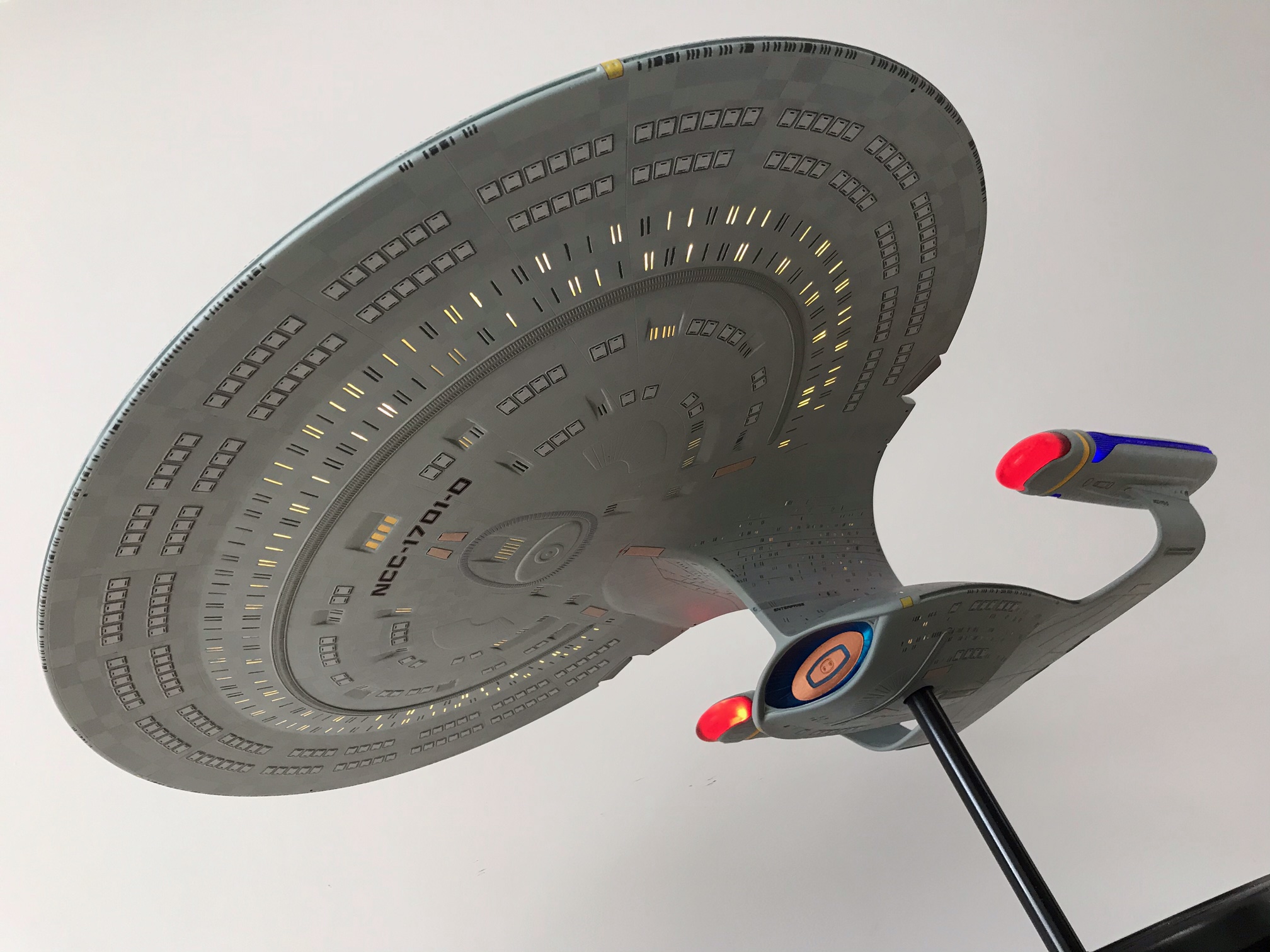

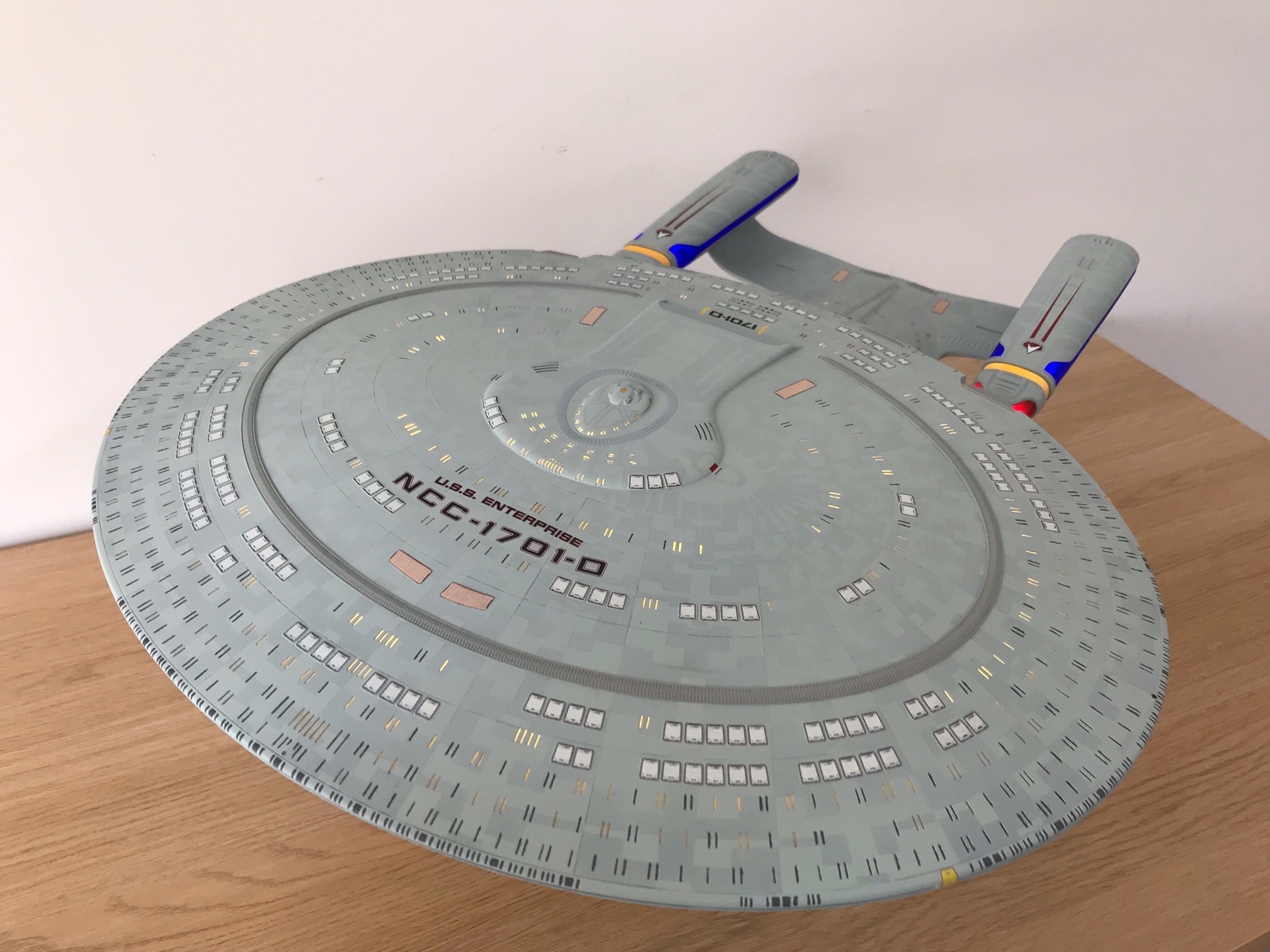

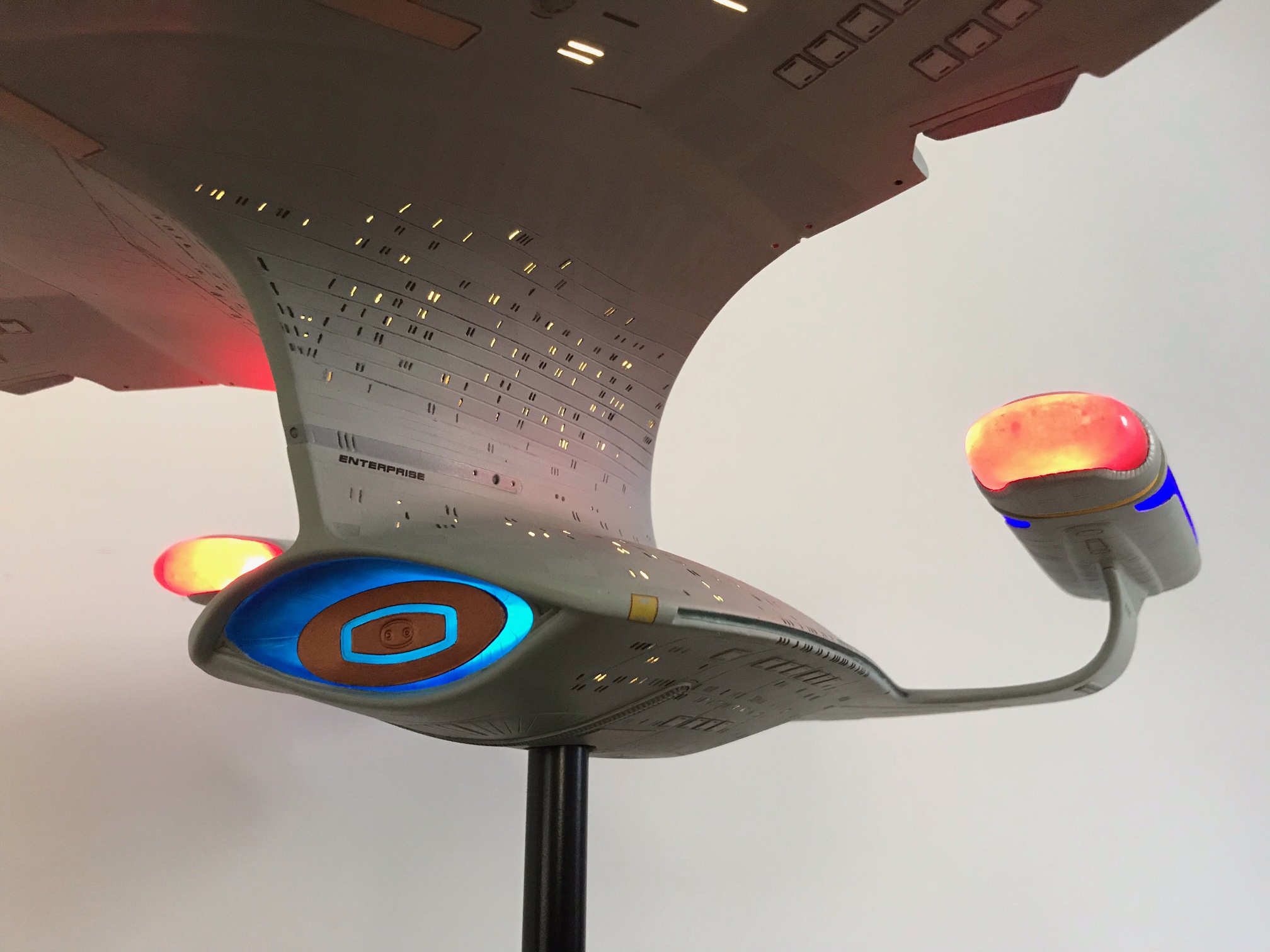

The build-up of this kit, shown below, was built by Malachy Maginness. Images are his and used by permission.

1:1000 1701D 16 1:1000 1701D 17 1:1000 1701D 18 1:1000 1701D 19
1:1000 1701D 20 1:1000 1701D 21

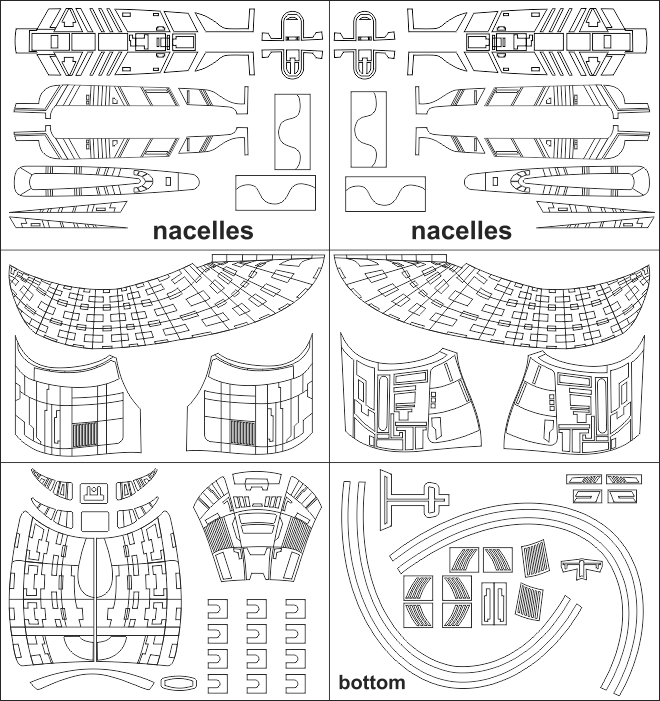

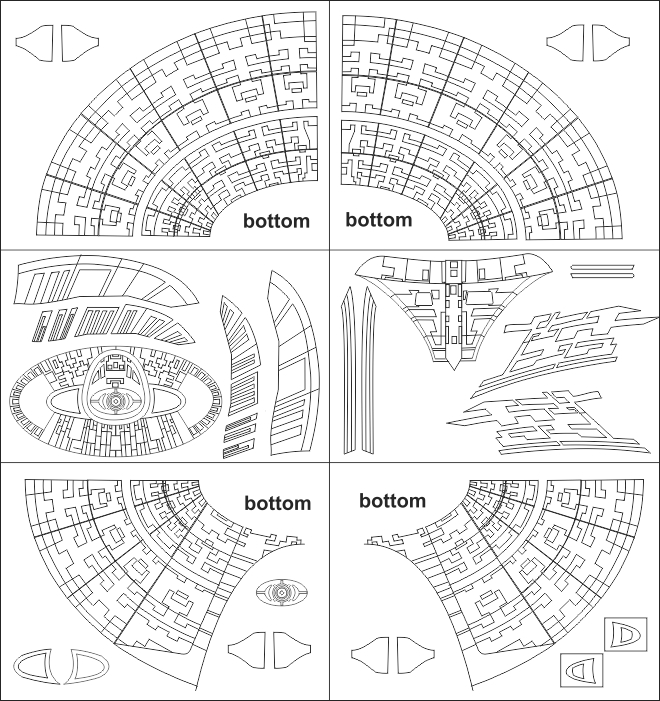

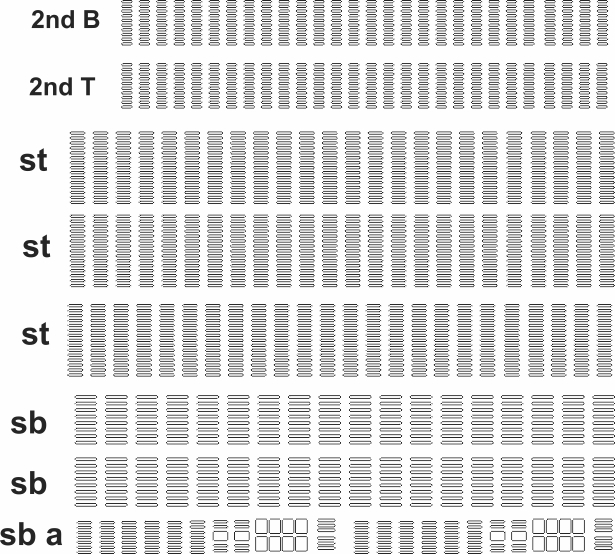

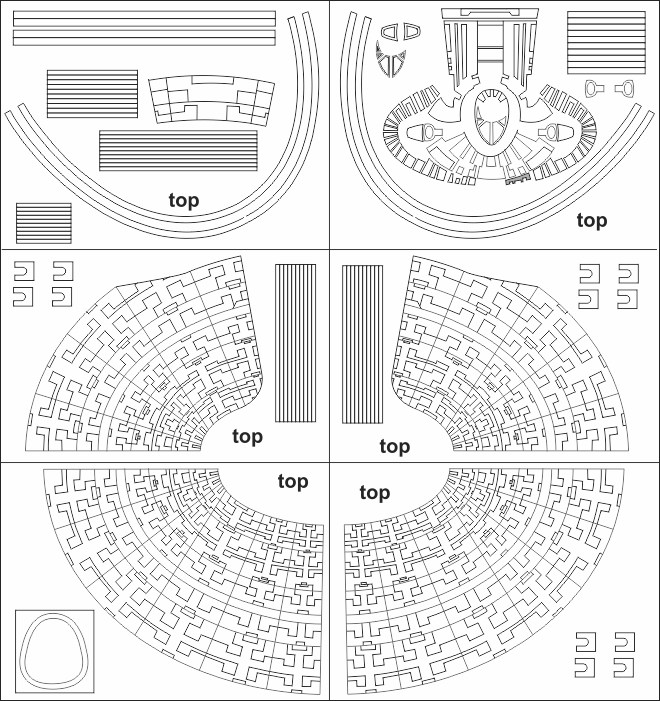

The images below depict painting masks made for the model by Aztek Dummy.


1:1000 1701D Aztek Masks 1 1:1000 1701D Aztek Masks 2 1:1000 1701D Aztek Masks 3 1:1000 1701D Aztek Masks 4
